Belangrijkste kenmerken

Heavy duty design
High precision control
Long life expectancy of 5M+ cycles
1- or 2-axis versions available
Customization for small quantities
Standard configurations available from stock

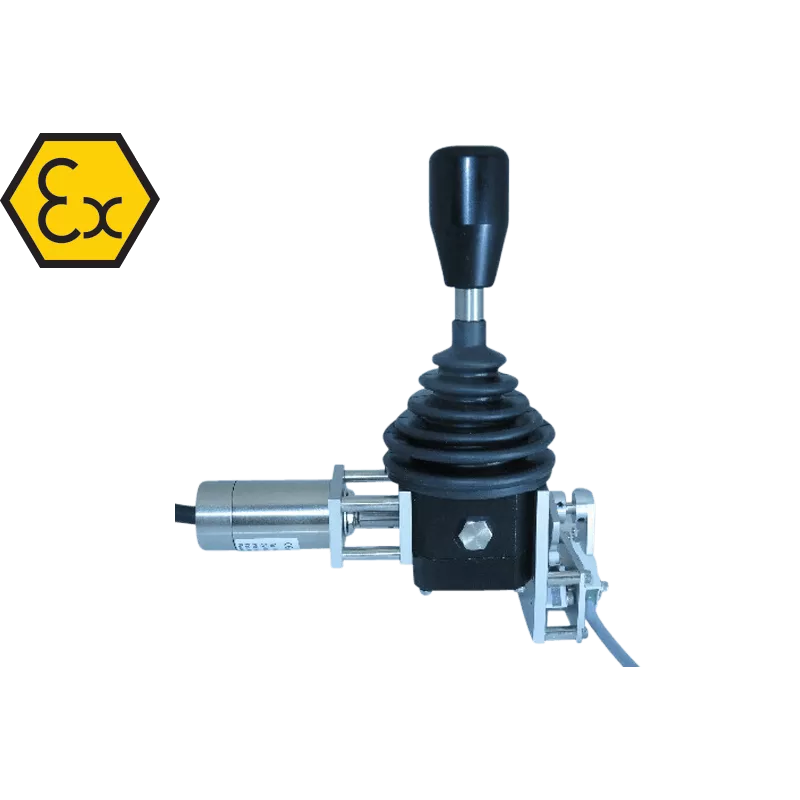

About the 50JCK-ex ATEX Hand Joystick

The S50JCK-EX joystick series combines a heavy duty joystick design with ATEX/IECEx certified potentiometers and/or switches for intrinsically safe use in EX Zone 1 and EX Zone 2 operations without the need for a galvanic barrier. The superior mechanical and electrical design offers high precision control and great reliability over its full operation lifetime (5M+ cycles).

Commonly used configurations are available from stock and can be delivered within days! This includes both 1-axis and 2-axis versions with only potentiometers or directional switches, as well as versions that combine potentiometers with directional switches. All standard configurations have a spring return device, a conical shaped knob, and a dust-proof rubber cover (IP54 above panel).

Even when a standard configuration does not meet the requirements in your unique application, the S50JCK-EX series still is the right joystick for you as each joystick can be configured and customized to your specific needs. Some customization options available on S50JCK-EX are high-torque lever movement, special detents, and higher IP rates (up to IP66 above panel). Other customization options and/or special requirements can be checked and discussed with our engineers!

Download the brochure of the S50JCK-ex Joystick for technical specifications, configurations and EX certificates.

Application areas

Offshore cranes & winches
Mining vehicles
Painting platforms
Chemical & process control systems
Sawmills & grain silos

Do you want to receive more information?

Our Controls team is happy to answer your technical questions and support you with a quotation within 48 hours. Call us at +31 (0)70 392 44 21, email sales@althen.nl or use the quotation form on this page.

Heeft u dit product nodig voor uw project?

Vraag een offerte aan, of laat uw gegevens achter voor meer informatie van één van onze experts.

Praat met een expert

Product downloaden

Volledig naar uw wens

Is dit niet precies wat u zoekt? Wij leveren standaard producten, maar kunnen u ook goed helpen met aangepaste producten, of een volledige tailor-made oplossing. Neem contact met ons op voor een advies op maat en een eventuele offerte.

Praat met een expert

Technische specificaties

Specificaties	Waarde
Contact resistance variation	Below 5% C.R.V.
Controlling rang of operating lever	Omni-directionally approx. ±30°~±35° operation from center position
Dielectric strength	1 minute at 500V.A.C.
Insulation resistance	Over 1000MΩ at 500VDC
Life expectancy	Approx. 5.000.000 operations
Mass	Approx. 350g
Operating force	Approx. 3N~15N(300~1500gf)
Operating temperature range	-20°C~+65°C
Output smoothness	Below 0.2% against input voltage
Resolution	Essentially infinite
Shock	294m/s²
Vibration	10~55Hz 98m/s²

50JCK-ex ATEX Hand Joystick
