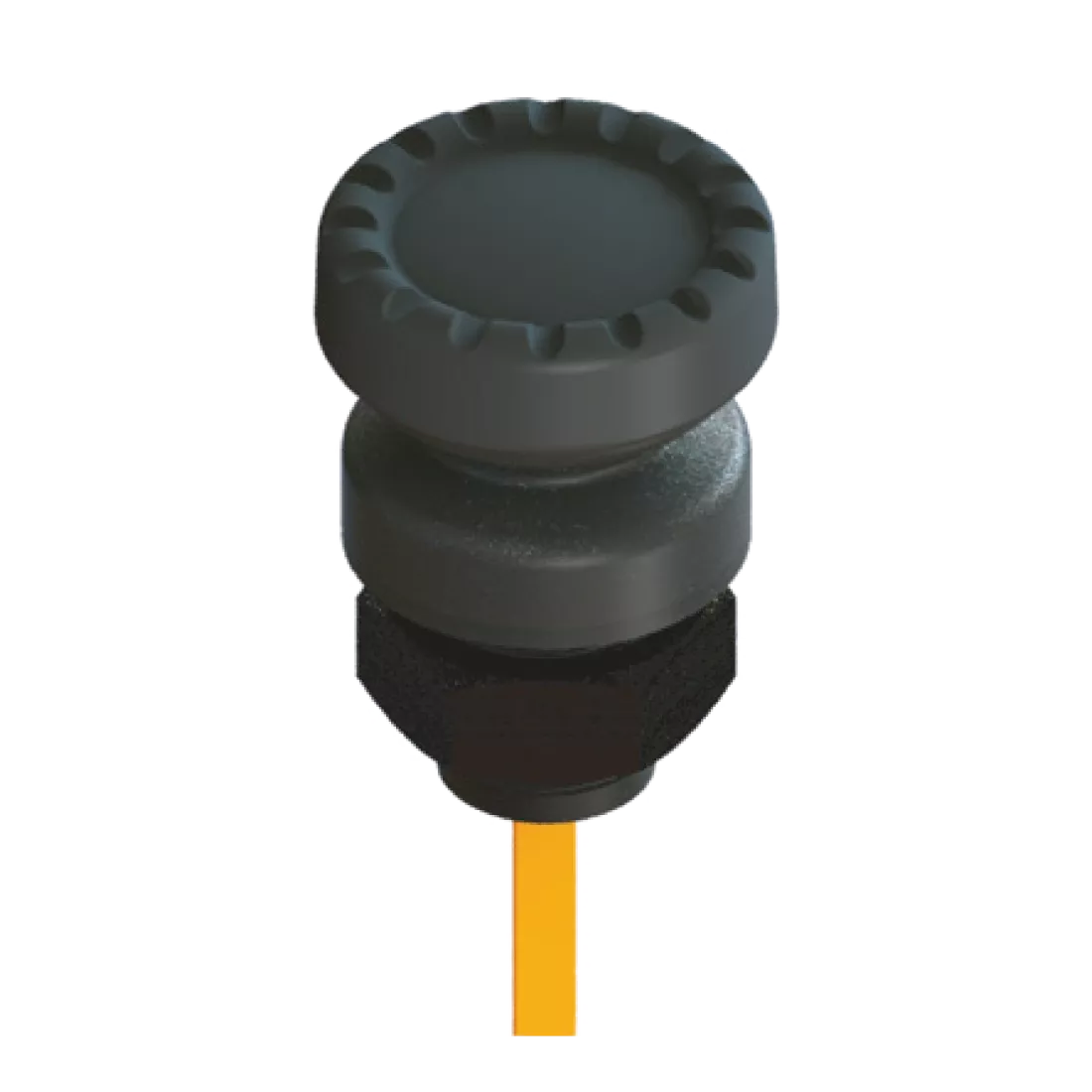

TS3 Micro low power Hall effect joystick
The TS3 Series is the world’s smallest low power industrial Joystick.
Belangrijkste kenmerken
- 14mm x 12mm package size above panel
- Hall effect technology
- 3.3V operating voltage
- IP67 above panel sealing
- 2.5 million lifecycles
About the TS3 Micro low power Hall effect joystick
The TS3 Series is the world’s smallest low power industrial Joystick. Featuring 3.3V Hall effect architecture for energy efficient long life performance, the TS3 Series is ideal for battery powered applications including UAV and UGV remote controls. Constructed with an M8 x 1mm threaded body to provide IP67 above panel sealing, this micro joystick’s optimized design offers proportional control in a total package size measuring 0.81” x 0.55”.
Heeft u dit product nodig voor uw project?
Vraag een offerte aan, of laat uw gegevens achter voor meer informatie van één van onze experts.
Product downloaden
Volledig naar uw wens
Is dit niet precies wat u zoekt? Wij leveren standaard producten, maar kunnen u ook goed helpen met aangepaste producten, of een volledige tailor-made oplossing. Neem contact met ons op voor een advies op maat en een eventuele offerte.
Praat met een expertTechnische specificaties
| Specificaties | Waarde |
|---|---|
| Angular travel: | 20º total (10º each direction from center) |
| Expected life: | 2.5 million operations |
| Centering: | Spring return |
| Mass/weight: | xx grams* |
| Mounting: | M8 x 1mm knurled nut |
| Maximum vertical load: | xx lbF |
| Maximum horizontal load: | xx lbF** |
| Actuation force: | 0.x +/- 0.1N |
| Technology: | Hall effect sensor, single |
| Resolution: | 8 bit256 counts, -128 to +127 |
| Supply voltage: | 3.3VDC +/- 0.3VDC regulated transient free |
| Electrical output: | SPI |
| Operating temperature: | -40ºC +85ºC |
| Storage temperature: | -50ºC +125ºC |
| Above panel sealing: | IP67* |
