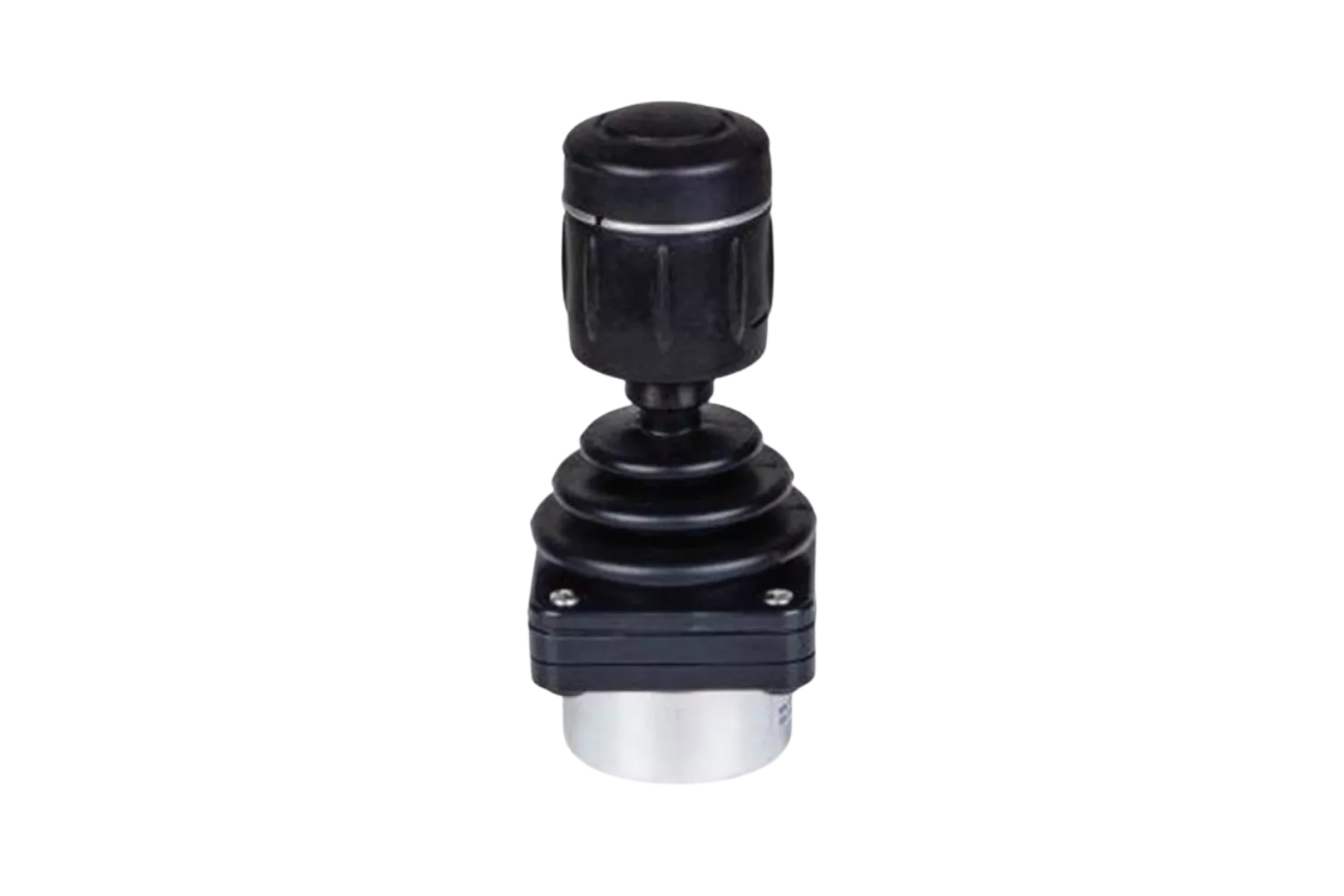

C9 Multi-axis finger joystick
Compact Hall effect fingertip joystick for video surveillance, medical panels, CNC equipment, robotics and industrial remote controls.
Key features
- Fingertip-operated design
- Hall effect technology
- Spring return mechanism
- Optional Z-axis output
- Optional RS232 or USB module
- Multiple handle options
Performance highlights
The C9 Multi-axis finger joystick is designed for precise fingertip control in compact operator interfaces. Its non-contact Hall effect technology supports reliable signal output, long lifetime and accurate multi-axis control.
Usage conditions
The C9 is suitable for demanding environments with an operating temperature range from -40 °C to +85 °C. It is available with different travel angles, output voltage ranges and operating guide feel options.
Possible applications
- Video surveillance control
- Medical machinery control panels
- CNC machining equipment panels
- Industrial robot operation panels
- Industrial remote controls
Advantages of choosing this product
The C9 offers flexible configuration options with optional Z-axis output, up to two tactile switches, redundant outputs and optional RS232 or USB module output. Many handle styles support ergonomic integration into compact control panels.
Other important features
- Travel angle ±20° or ±27° for X/Y axis
- Travel angle ±40° for Z axis
- Operating force 2.3–6 N
- Mechanical life 2 million cycles for X/Y
- Mechanical life 1 million cycles for Z axis
- Product weight approx. 160 g
Do you need this product for your next project?
Request a quotation today or leave your details to receive more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Travel angle | ±40° Z axis; ±20°/±27° X or Y axis |
| Operating force | 2.3–6 N |
| Mechanical life | 2 million cycles X/Y; 1 million cycles Z |
| Product weight | Appr. 160 g |
| Supply voltage | 5.0 ± 0.5 Vdc or 9~32 Vdc |
| Power current consumption | <11 mA per channel |
| Center voltage | 2.5 V ±2% Vs |
| Maximum output linearity tolerance | ±3% |
| Maximum overload voltage | 20 Vdc |
| Maximum reverse voltage | -10 Vdc |
| Load resistance | 10 KΩ |
| Operating temperature | -40 °C~+85 °C |
| Storage temperature | -40 °C~+85 °C |
| Protection class | IP ratings may vary from model to model |
| EMC | EN IEC 6100-6-4:2019; EN IEC 6100-6-2:2019 |
| Impact | IEC 60068-2-27, 50 g, 11 ms |
| Vibration | IEC 60068-2-64, 3.6 gRMS |
