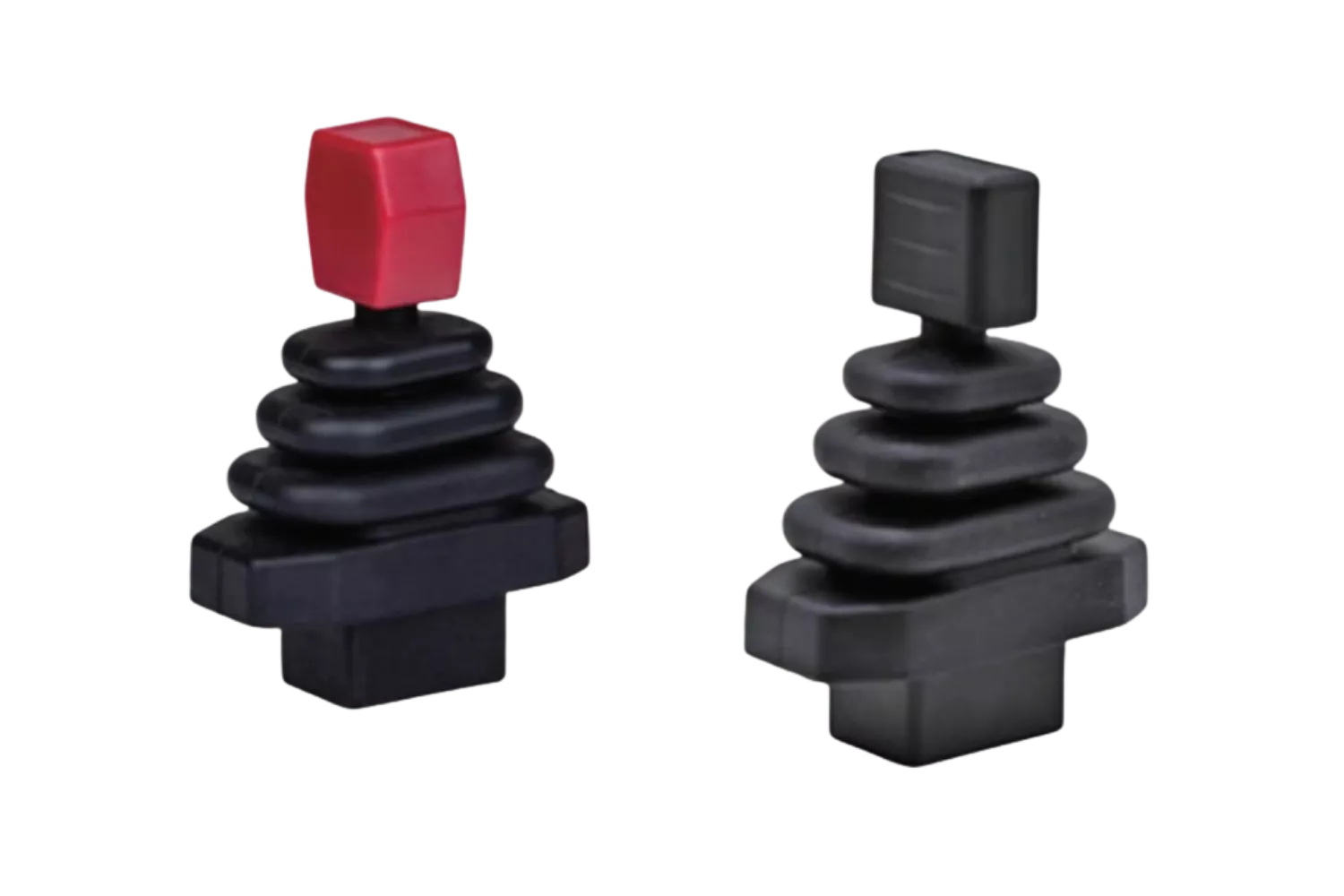

FJ12 series single axis joystick
Compact fingertip joystick for precise single-axis control in industrial remote controllers and armrest boxes. Designed with non-contact hall effect technology for long service life and reliable operation.
Key features
- Compact side-by-side mounting
- Fingertip-operated spring return
- Non-contact hall effect technology
- Supply voltage 5 Vdc or 9–32 Vdc
- Mechanical life >3 million cycles
- Optional redundant output versions
Performance highlights
The FJ12 series single axis joystick is a compact industrial joystick for forward and backward control. Its non-contact hall effect technology supports high reliability, low wear and long lifetime operation.
Usage conditions
The joystick operates from -40 °C to +85 °C and is available with 5 Vdc or 9–32 Vdc supply options. It supports multiple ratiometric output ranges and optional redundant output configurations.
Possible applications
- Industrial remote controllers
- Control armrest boxes
- Operator panels
- Compact HMI control systems
- Mobile machinery control interfaces
Advantages of choosing this product
The FJ12 is suitable for engineers who need a compact joystick with reliable signal output, simple panel integration and flexible configuration options.
Other important features
- Travel angle ±30°
- Operating force 1–5 N
- Maximum allowable force 200 N
- Approx. 35 g product weight
- Cable wiring length 300 mm
- B1 or B5 handle options
Do you need this product for your next project?
Request a quotation today or leave your details to receive more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Travel angle | ±30° |
| Operating force | 1–5 N |
| Maximum allowable force | 200 N |
| Mechanical life | >3 million cycles |
| Product weight | Approx. 35 g |
| Supply voltage | 5.0±0.5 Vdc or 9–32 Vdc |
| Power current consumption | <11 mA per channel |
| Center voltage | 2.5 V ±3% Vs |
| Output linearity voltage tolerance | ±3% |
| Maximum overload voltage | 20 Vdc |
| Maximum reverse voltage | -12 Vdc |
| Load resistance | 10 KΩ |
| Operating temperature | -40 °C to +85 °C |
| Storage temperature | -40 °C to +85 °C |
| Protection class | IP rating varies by model |
