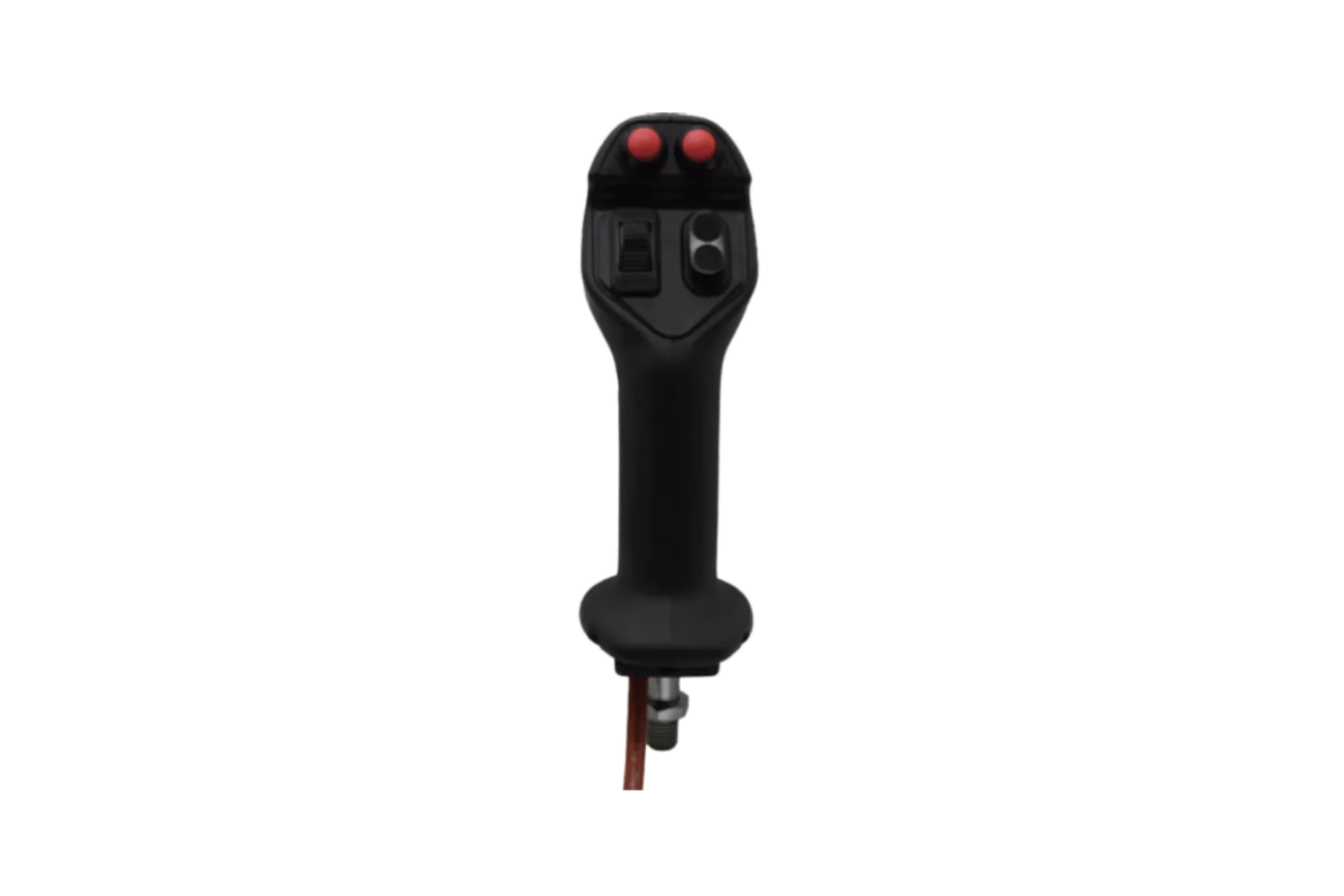

K12 Series Multi-function grip

---

Key features

• Ergonomic multi-function grip
• Pushbutton, rocker and thumbwheel options
• Spring-return thumbwheel operation
• FNR switch with self-hold function
• Approx. 330 g product weight
• Multiple mounting configurations

---

Performance highlights

The K12 Series multi-function grip is designed for comfortable and reliable control in mobile machinery, joystick controllers, control panels and armrest boxes. Its ergonomic shape supports durable operation, while the configurable front and back plate options allow engineers to match the grip layout to the control function required.

Usage conditions

The grip supports demanding machine-control environments with an operating temperature range of -25 °C to +55 °C and a storage temperature range of -40 °C to +85 °C. IP ratings may vary by model, so the correct configuration should be confirmed for the intended application.

Possible applications

• Agricultural machinery
• Joystick controllers
• Control panels
• Armrest boxes
• Mobile machine control
• Operator interface systems

Advantages of choosing this product

The K12 Series gives Technical Product Engineers a flexible HMI grip platform for applications where multiple control inputs must be integrated into one ergonomic handle. Options include FNR rocker switch layouts, thumbwheel combinations, top pushbuttons, bottom buttons, cable wiring and Deutsch connector wiring.

Other important features

• Pushbutton operating force approx. 2 N
• Pushbutton electrical lifetime: 1 million cycles
• Thumbwheel electrical lifetime: 3 million cycles
• Button load capacity: 2 A @ 36 VDC
• Thumbwheel supply voltage: 5.0 ±0.5 VDC or 9–32 VDC
• Cable wiring length: 500 mm default

---
