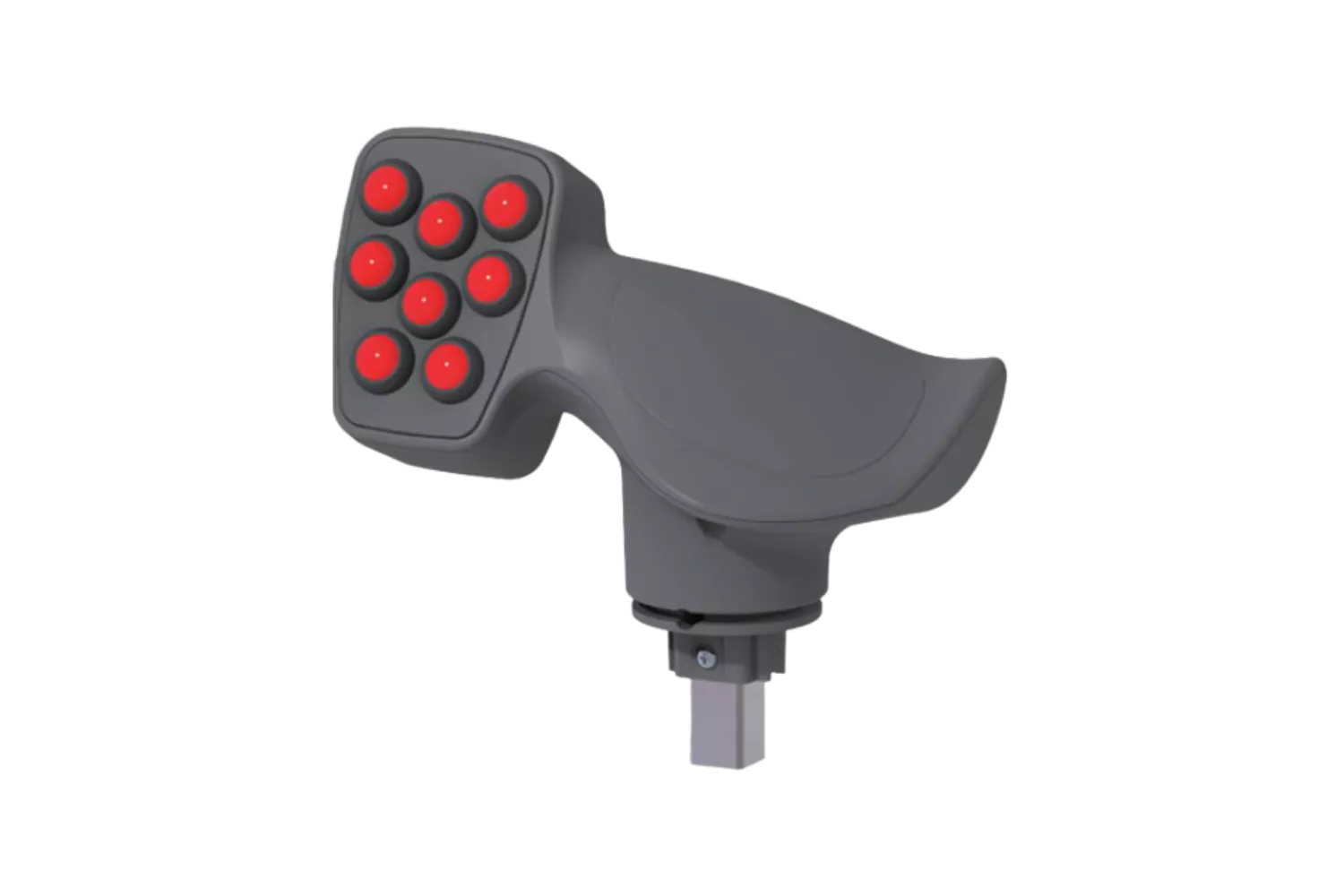

K15 series Multi-function grip
Ergonomic multi-function grip for industrial control panels, armrest boxes and electro-hydraulic control systems. Designed for durable operation with configurable front and back button layouts.
Key features
- Ergonomic and durable grip design
- IP65 dustproof and waterproof option
- Up to 8 front panel buttons
- Up to 4 back panel buttons
- Optional rocker switch or thumbwheel
- Spring-return or self-locking buttons
Performance highlights
The K15 Series multi-function grip is designed for reliable control in industrial and electro-hydraulic applications. Its ergonomic shape supports comfortable long-term operation, while the configurable button layout makes it suitable for a wide range of machine control interfaces.
Usage conditions
The grip supports operating temperatures from -30°C to +80°C and storage temperatures from -40°C to +85°C. Protection class may vary by model, with IP ratings available depending on configuration.
Possible applications
- Industrial controllers
- Control panels
- Armrest boxes
- Electro-hydraulic control systems
Advantages of choosing this product
The K15 Series gives engineers flexibility during machine interface design. Multiple front and back button configurations, adapter choices and wiring options make it suitable for custom control layouts without compromising operator comfort.
Other important features
- Approx. 350 g product weight
- Button operating force approx. 5 N
- Mechanical lifetime over 1 million cycles
- Button load capacity 2 A @ 36 Vdc
- 500 mm wiring option available
Do you need this product for your next project?
Request a quotation today or leave your details to receive more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Maximum forward width of handle | 176.5 mm |
| Number of buttons on front panel | 0–8 |
| Number of buttons on back panel | 0–4 |
| Button operating force | Approx. 5 N |
| Button operation mode | Spring return or optional self-locking button |
| Pushbutton mechanical lifetime | >1 million cycles |
| Product weight | Approx. 350 g |
| Button electrical lifetime | >0.2 million cycles |
| Button load capacity | 2 A @ 36 Vdc |
| Button insulation resistance | >1000 MΩ |
| Operating temperature | -30°C to +80°C |
| Storage temperature | -40°C to +85°C |
| Protection class | IP ratings may vary by model |
