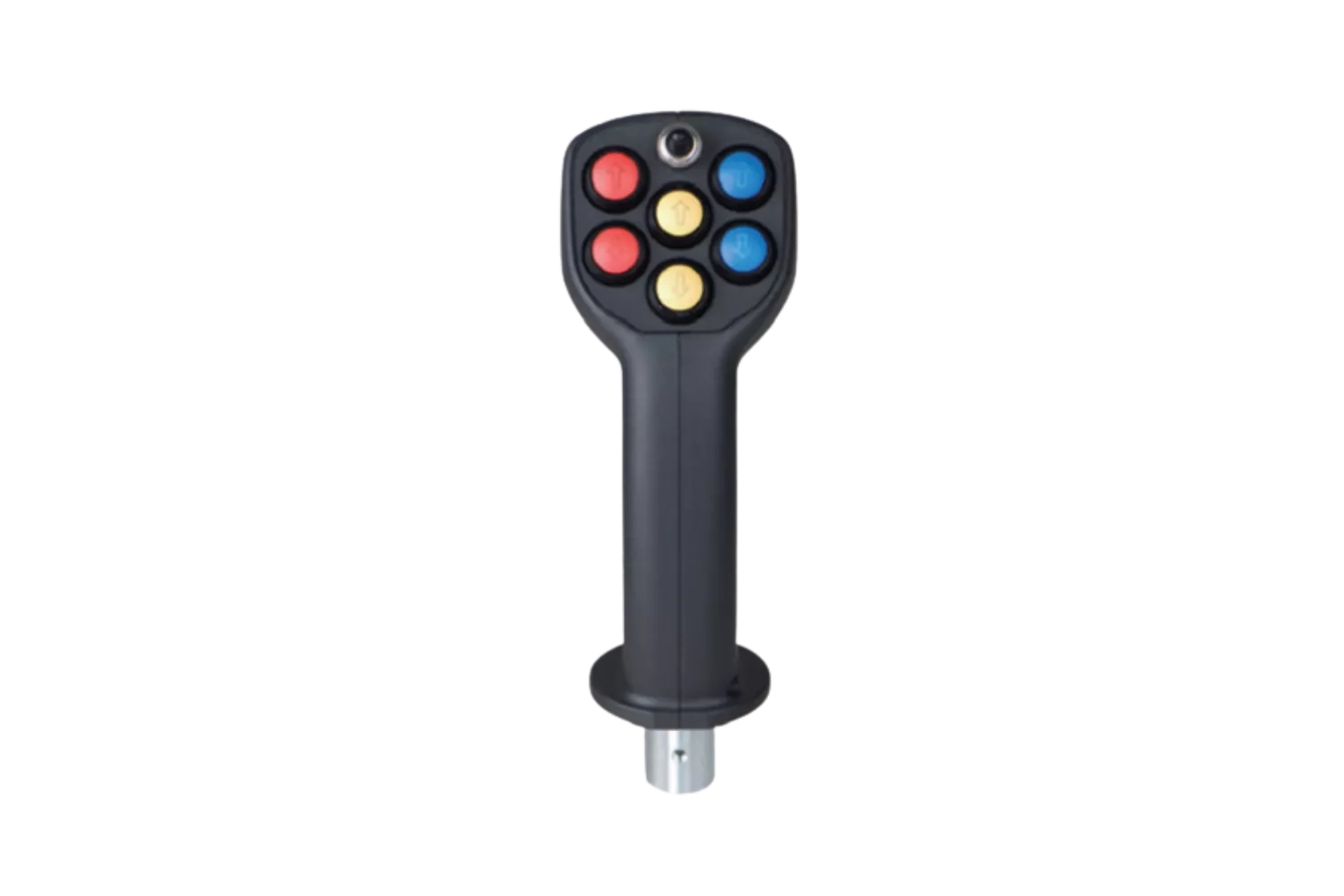

K2 series Multi-function grip
Ergonomic multi-function grip for industrial controllers, control panels, armrest boxes and electrohydraulic control systems. Built for durable operator control with configurable buttons, thumbwheels, rocker switches, top button and deadman switch options.
Key features
- Advanced ergonomic grip design
- Durable operation for industrial use
- IP65 dustproof and waterproof design
- 0–8 available installation buttons
- Optional deadman switch or top button
- Rocker switch or thumbwheel options
Performance highlights
The K2 series multi-function grip is designed for reliable and comfortable machine control in demanding industrial environments. Its ergonomic shape supports durable daily operation, while the configurable front plate allows engineers to match the grip layout to the control task.
Usage conditions
The grip supports operation from -30°C to +80°C and storage from -40°C to +85°C. Depending on the model configuration, the protection class can vary, with IP ratings available for dustproof and waterproof use.
Possible applications
- Industrial controllers
- Control panels
- Armrest boxes
- Electrohydraulic control systems
Advantages of choosing this product
The K2 series helps technical product engineers integrate multiple control functions into one compact operator grip. With button, rocker switch, thumbwheel, top button and deadman switch options, it supports flexible HMI and joystick control concepts without unnecessary complexity.
Other important features
- Button operating force: 5N
- Spring return or maintained button mode
- Button mechanical life: 1 million cycles
- Button electrical life: > 0.2 million cycles
- Approximate product weight: 350g
- Button load capacity: 2A@36Vdc
Do you need this product for your next project?
Request a quotation today or leave your details to receive more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Number of available installation buttons | 0~8 |
| Button operating force | 5N |
| Button operation mode | Spring return or maintain button |
| Button mechanical life | 1 million cycles |
| Button electrical life | > 0.2 million cycles |
| Product weight | Appr.350g |
| Button load capacity | 2A@36Vdc |
| Button insulation resistance | >1000MΩ |
| Operating temperature | -30°C~+80°C |
| Storage temperature | -40°C~+85°C |
| Protection class | IP ratings may vary from model to model, for more information, please consult our sales staff |
