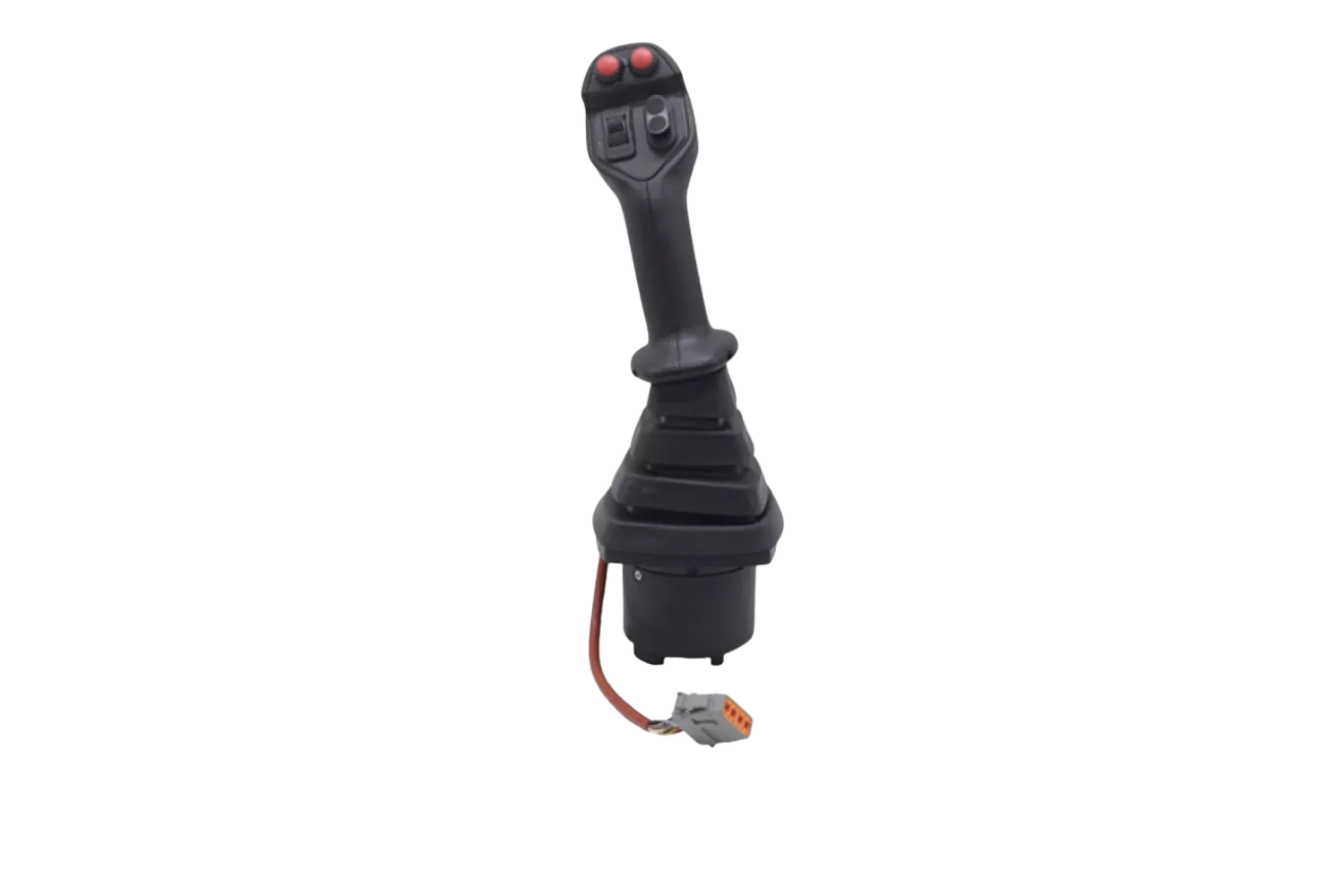

H4 series Multi-axis joystick
Robust Hall-effect hand joystick for heavy-duty mobile machinery and electrohydraulic control systems. Designed with CANbus output, spring return and configurable stroke force for harsh working conditions.
Key features
- Double-axis operation with spring return
- Non-contacting Hall-effect technology
- CANbus output
- Configurable stroke force
- Various handle options
- Designed for harsh working conditions
Performance highlights
The H4 series multi-axis joystick is designed for demanding mobile machinery and industrial control applications. Its non-contacting Hall-effect technology supports high reliability and long service life, while the operating feel is designed to resemble a hydraulic pilot valve.
Usage conditions
The H4 series operates with a 9–32 Vdc supply voltage and supports CAN2.0b communication with J1939 or CANopen protocol. It is suitable for harsh environments with an operating temperature range from -25 °C to +85 °C.
Possible applications
- Excavators
- Rotary drilling rigs
- Wheel loaders
- Electrohydraulic control systems
Advantages of choosing this product
The joystick combines robust mechanical design, CANbus output and configurable stroke force. This makes it suitable for machine builders who need reliable, ergonomic and digitally integrated control.
Other important features
- Travel angle of ±20° or customized travel angle
- Mechanical life of 5 million cycles
- K12 and K14 handle options
- Left-hand, right-hand or vertical installation
- Deutsch connector or cable wiring options
Do you need this product for your next project?
Request a quotation today or leave your details to receive more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Travel angle | ±20° or other travel angle can be customized |
| Operating force | 6–10 N, 18–20 N end stroke version |
| Mechanical life | 5 million cycles |
| Product weight | Appr. 1550 g, only the base 1050 g |
| Supply voltage | 9~32 Vdc |
| Power current consumption | <55 mA |
| CAN version | CAN2.0b |
| CAN protocol | J1939 protocol or CANopen protocol |
| Baud rate | 250 Kbps, J1939 protocol; 10 Kbps–1 Mbps, CANopen protocol |
| Operating temperature | -25°C~+85°C |
| Storage temperature | -40°C~+85°C |
| Protection class | IP ratings may vary from model to model |
| EMC | EN IEC 6100-6-4-2019, EN IEC 6100-6-2-2019 |
