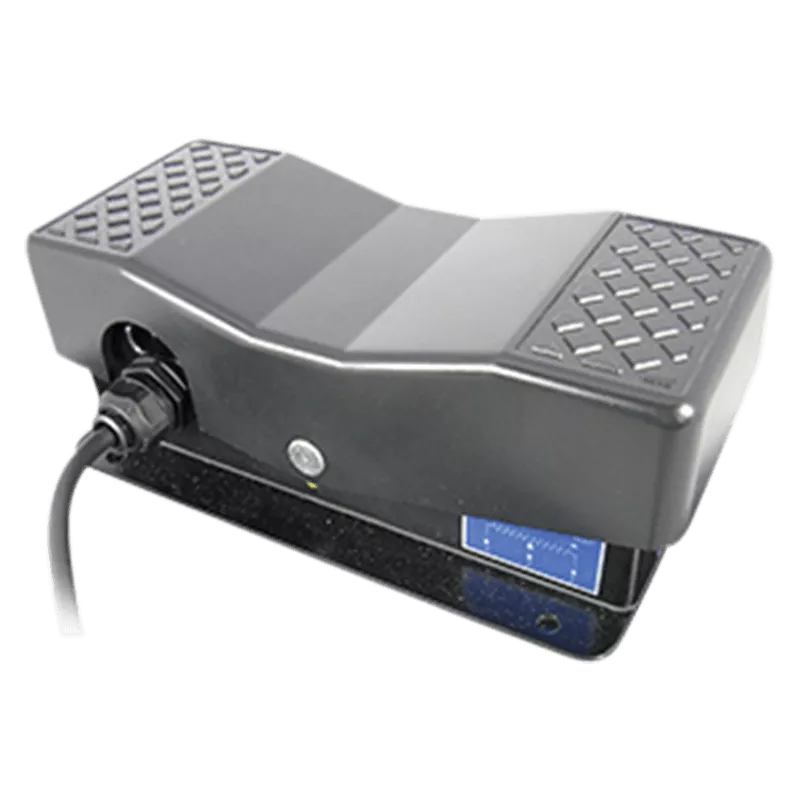

200FCW Industrial Footpedal
Wig-wag industrial footpedal with incorporated potentiometer and a conductive plastic element
Key features
- Stepping see-saw pedal type
- IP54
- Potentiometer
- Conductive plastic
About the 200FCW Industrial Footpedal
Wig-wag industrial footpedal with incorporated potentiometer and with a conductive plastic resistive element
Do you need this product for your next project?
Request a quotation today or leave your details to receive more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Ceneter returning accuracy | 50% v1.5% |
| Contact resistance variation | Below 5% C.R.V. |
| Dielectric strength | 1 minute at 500V.A.C. |
| Electrical rotating angle | Approx. 75° Center shortened zone: With a shortened zone with abt. 8° in the center position |
| Insulation resistance | Over 1.000MΩ at 500VDC |
| Life expectancy | Approx. 1.000.000 operations |
| Mass | Approx. 1.5kg |
| Operating angle | Approx. ±11° |
| Operating force | Standard spring return device: Automatically return to center. Abt. 20N(Abt. 2.000gf.) |
| Operating method | Stepping see-saw pedal type |
| Operating temperature range | -20°C~+65°C |
| Output smoothness | Below 0.2% against input voltage |
| Potentiometer incorporated | SFCP22E, 10kΩ ±20%, 0.35W, independent linearity tolerance ±3% (conductive plsatic resistive element) |
| Resolution | Essentially infinite |
| Shock | 294m/s² |
| Vibration | 10~55Hz 98m/s² |
