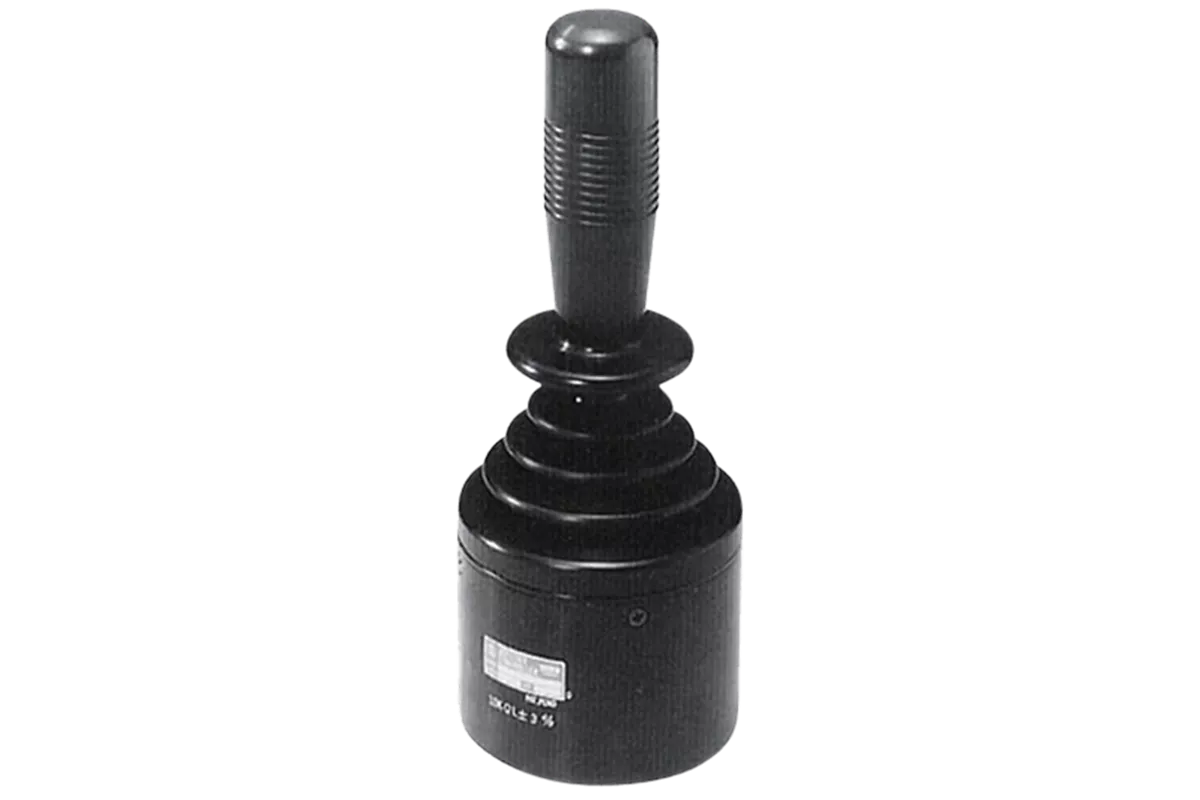

H90JB Multi-Axis Hand Joystick
Multi-Axis (2-axis or 3-axis) joystick controller with a Hall Effect IC type potentiometer
Key features
- Two or three dimensions (2 axis or 3 axis)
- Potentiometer incorporated
- With a hall effect IC
- Protection IP65
About the Large Multi-Axis Hand Joystick H90JB
This two-axis H90JB joystick controller incorporates a Hall Effect IC type potentiometer, which offers long life expectancy, high reliability and safety, and are best suitable for special vehicles with strong vibration.
Applications for H90JB
- Robot operations
- Crane operations
- Industrial vehicles
- Civil engineering and construction machinery
Do you need this product for your next project?
Request a quotation today or leave your details to receive more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| 3-dimensional coordinate type: Approx. ±45°~±50° operation from center position of knob in addition to the operating range of 2-dimensional coordinate type | |
| 3-dimensional coordinate type: Approx. 750g | |
| Effective output: Approx. 0.5V~4.5V | |
| Electrical rotating angle: X and Y-axis: Approx. ±22°, Z-axis: Approx. ±45° | |
| Independent linearity tolerance: ±3%FS | |
| Load resistance: over 10KΩ | |
| X, Y directions: Approx. 2~12N(200~1,200gf) | |
| Z direction: Approx. 20~85mN•m(200~850gf•cm) | |
| Controlling range of operating lever | 2-dimensional coordinate type: Approx. ±22°~±26° omni-direction from center position |
| Dielectric strength | 1 minute at 250 V.A.C. |
| Ems durability | 100V/m(80MHz~1GHz 1KHz sine-wave 80%AM modulation) |
| Esd durability | ±8KV contact ±15KV aerial discharge (Based on IEC61000-4-2). |
| Hall effect ic type potentiometer (shsm18e) incorporated | Applied voltage: 5V±10%D.C. |
| Insulation resistance | Over 100MΩ at 250V.D.C. |
| Mass | 2-dimensional coordinate type: Approx. 650g |
| Mechanical life expectancy | Approx. 10.000.000 operations |
| Operating force | Standard spring return device: Automatically return to center |
| Operating temperature range | -20°C~+65°C |
| Resolution | Infinitesimal |
| Shock | 294m/s² |
| Vibration | 10~55Hz 98/s² |
