Key features

Heavy duty, submersible
Proven workhorse for long stroke applications
CSA, CENELEC certification for hazardous area applications
Designed for extreme industrial and marine environments

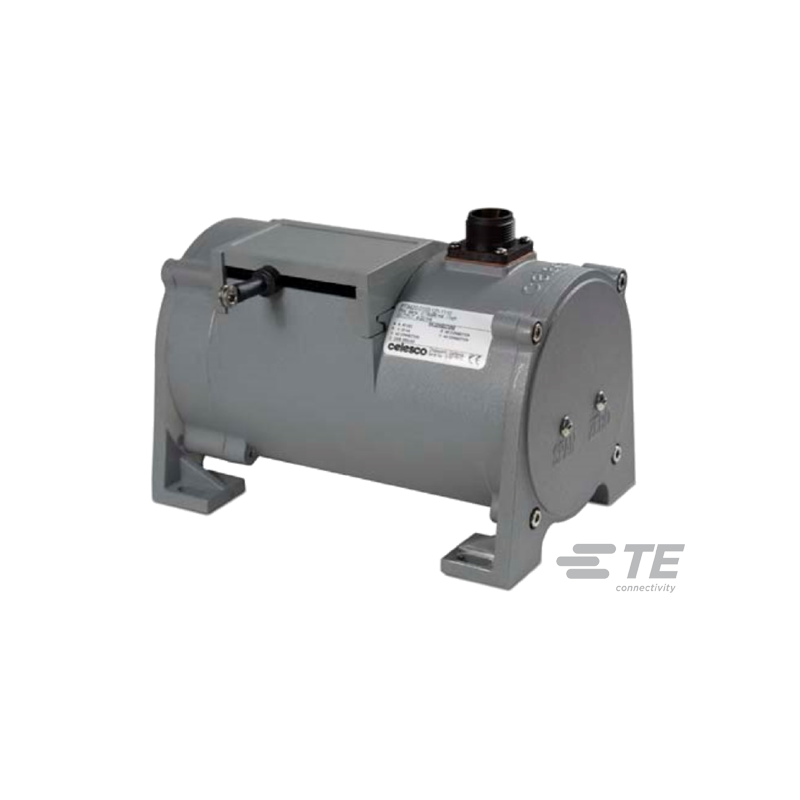

The PT9 series is a type of analog draw-wire sensor designed for precise and reliable linear position measurement. Here's an overview based on the information provided on the page:

Measurement range: The PT9 series offers a measurement range of 0-4.3 meters (0-4300 mm), providing flexibility for various applications requiring extended linear displacement measurement.

Analog output: These sensors feature an analog output signal, which allows for continuous and real-time monitoring of the position within the specified range. The analog output typically provides voltage or current signals proportional to the measured displacement.

High accuracy: With their high-precision measurement capabilities, the PT9 series ensures accurate positioning data, making them suitable for applications where precision is critical.

Durable construction: Built to withstand harsh industrial environments, these sensors are constructed with robust materials that ensure durability and longevity, even in demanding conditions.

Easy installation: The PT9 Extended Series is designed for easy installation and integration into existing systems, minimizing downtime and simplifying the setup process.

Overall, the PT9 Extended Series draw-wire sensors offer a reliable solution for measuring extended linear displacement accurately, making them a valuable component in industrial automation and control systems.

Options

Voltage divider (potentiometric)
0-10VDC, 0-5VDC
4-20mA feedback signal
Incremental/absolute encoder
CANbus communication
DeviceNET communication
RS232 serial communication
Free-release proof with VLS (Velocity Limiting System) option
M12 and DEUTSCH connector options
Reduced cable opening down to singlepoint exit to block most debris from entering the cable-reel area
Position/velocity transducer combination for linear position measurements up to 1700 inches

Applications for PT9 Series Draw-wire sensors

Mobile hydraulic boom position
Water resource management
Mining and tunnel boring equipment
Telescoping mechanism position
Theatre stage control
